Description

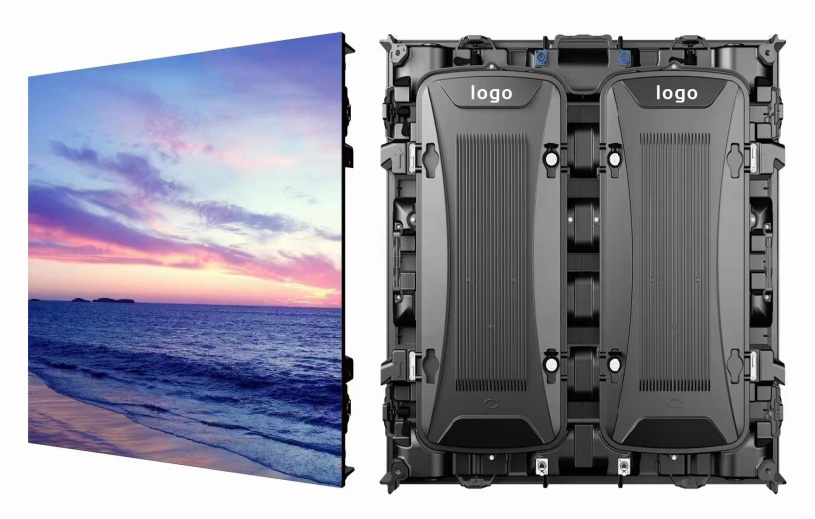

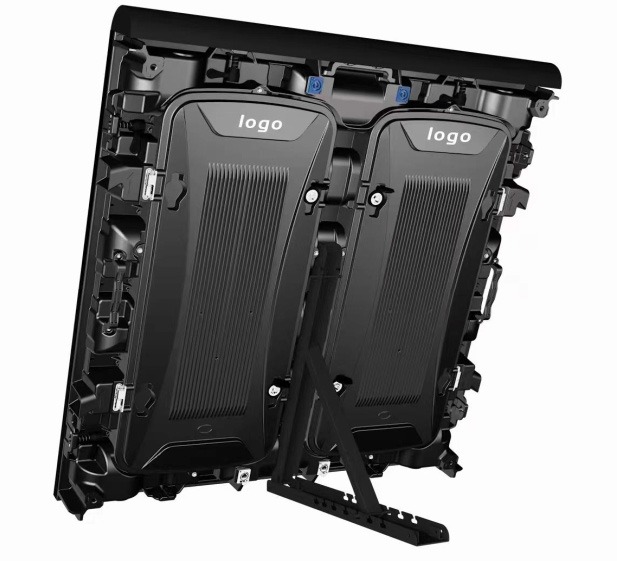

Engineered for large, permanent displays, THOR uses a 960×960 mm die-cast aluminum cabinet with 320×160 mm modules to deliver robust alignment, fast installation, and reliable uptime. With indoor (≈1200 cd/㎡) and outdoor (≈5500 cd/㎡) configurations and broadcast-grade refresh (≥3840–7680 Hz), THOR is a workhorse for stadiums, civic plazas, transport hubs, campuses, and DOOH billboards.

✨ Key Benefits

• Large 960×960 mm cabinet – fewer seams, faster install, solid structure.

• Indoor & outdoor options – consistent visual performance across environments.

• Camera-friendly – high refresh for flicker-free IMAG and broadcast.

• Service-friendly – standardized 320×160 mm modules.

• Power-smart – ≤300–400 W average and ≤600–800 W max (configuration dependent).

• Built to last – IP45/IP65 ingress protection and 26–28.5 kg die-cast build.

📌 Model Options & Viewing Distance

• P4 (Indoor / Outdoor) — ≥4 m viewing

  • Pixel pitch: 4.0 mm | Pixel density: 62,500 dots/㎡

  • Cabinet resolution (960×960 mm): 240×240

• P5 (Indoor / Outdoor) — ≥5 m viewing

  • Pixel pitch: 5.0 mm | Pixel density: 40,000 dots/㎡

  • Cabinet resolution (960×960 mm): 192×192

• P8 (Indoor / Outdoor) — ≥8 m viewing

  • Pixel pitch: 8.0 mm | Pixel density: 15,625 dots/㎡

  • Cabinet resolution (960×960 mm): 120×120

• P10 (Indoor / Outdoor) — ≥10 m viewing

  • Pixel pitch: 10.0 mm | Pixel density: 10,000 dots/㎡

  • Cabinet resolution (960×960 mm): 96×96

🧩 Technical Highlights

• Cabinet Size: 960 × 960 mm

• Module Size: 320 × 160 mm

• Brightness: ≈ 1200 cd/㎡ (indoor) / ≈ 5500 cd/㎡ (outdoor)

• Refresh Frequency: ≥ 3840–7680 Hz

• Ingress Protection: IP45 / IP65 (configuration dependent)

• Cabinet Material: Die-cast aluminum

• Cabinet Weight: 26–28.5 kg (by configuration)

• Power Consumption: Average ≤300–400 W / Maximum ≤600–800 W (pitch & configuration dependent)

🛠️ Best-Fit Applications

• DOOH & municipal signage — roadside, plazas, transport hubs.

• Sports venues & arenas — bowls, scoreboards, concourses.

• Campuses & corporate parks — wayfinding, announcements, branding.

• Attractions & large venues — gateways, facades, showpiece walls.
